When we’re sizing replacement O-rings, accuracy is key. First, we need to measure the diameter and thickness using tools like digital calipers or micrometers. Standards such as AS568 categorize sizes from 0.040 to 0.275 inches, ensuring we select the right fit. Proper tolerances are essential too, with guidelines suggesting 15-30% compression for efficiency. This way, we avoid issues like leaks. Let’s explore more about material choices and their effects on performance!
Key Takeaways
- Use digital calipers for precise measurements of the O-ring’s diameter and thickness.
- Refer to AS568 sizing charts for standard size categorization to ensure proper fit.
- Check compatibility with material properties and chemical conditions for long-term performance.
- Allow for dimensional tolerances, ideally compressing the O-ring by 15-30% for static seals.
- Utilize specialized tools like the Parker O-Ring Sizing Gauge for quick and accurate sizing.
Measurement Techniques for O-Ring Replacement
You may be interested
When it comes to replacing O-rings, proper measurement is essential for ensuring a perfect fit in your application. We can achieve measurement accuracy through various techniques. One common method is visual identification, where we compare the O-ring against known sizes or charts for a rough estimate. However, for more precision, I recommend using tools like digital calipers, which quickly provide exact dimensions, or micrometers for thickness.
Best practices include measuring on a clean surface and avoiding compression during measurement. Taking multiple readings helps average out any discrepancies. If you’re working with damaged O-rings, focus on intact segments for accurate measurements. Ultimately, these techniques will help us achieve the best possible fit for our O-ring replacements. Additionally, ensuring suction power is properly calibrated can also influence the effectiveness of systems incorporating O-rings in vacuum applications.
Recommended Products
Heavy-Duty - The Starrett Internal Groove Micrometer has flush ends contacts, hardened and ground gaging contacts that are .030" thick.
Absolute Origin Calibration: The iGAGING Absolute Origin Electronic heavy duty digital caliper retains the set zero reference point even after the caliper is off. This large thickness or diameter measuring tool feature saves time, as well as ensures consistent and accurate inch/metric measurements at 12", 24", or 40".
Specifications: Range: 0-24"/600mm | Accurary: ±0.002"/0.05mm | Resolution: 0.0005"/0.01mm | Jaw Depth: 3.9" /100mm | Absolute Origin

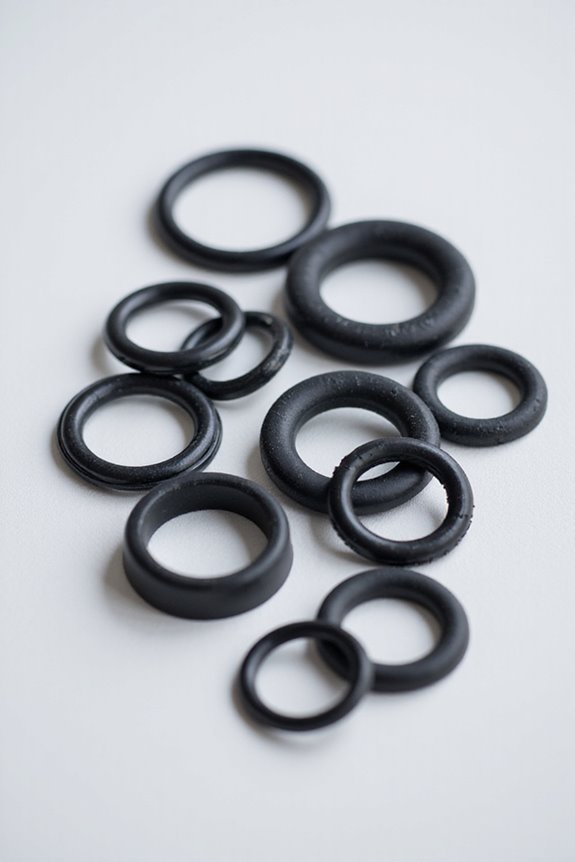

Sizing Standards and Conventions
Understanding O-ring sizing standards and conventions is fundamental for anyone involved in selecting and replacing O-rings. First, we have the AS568 standard, which is the primary American guideline. It features sizes categorized mainly by cross-sectional diameters, ranging from 0.040 to 0.275 inches, covering 369 sizes.
On the international front, ISO 3601 and JIS B 2401 focus on global compatibility but use metric measurements. This leads to size compatibility challenges due to standard differences between inch and metric systems.
To guarantee proper fit, we must refer to size charts for the exact dimensions. Awareness of these standards enhances our ability to select the right O-ring for any application while ensuring effectiveness and reliability. Additionally, understanding steam pressure levels is essential for achieving optimal performance in cleaning applications.
Recommended Products
AS568 Aflas O-Ring Kit, 80 Durometer, Black, 30 SIZES 382 PCS
Package length: 1.3 cm
Made of Buna-nitrile (also called Buna-N) for use with a variety of fluids and hydrocarbons

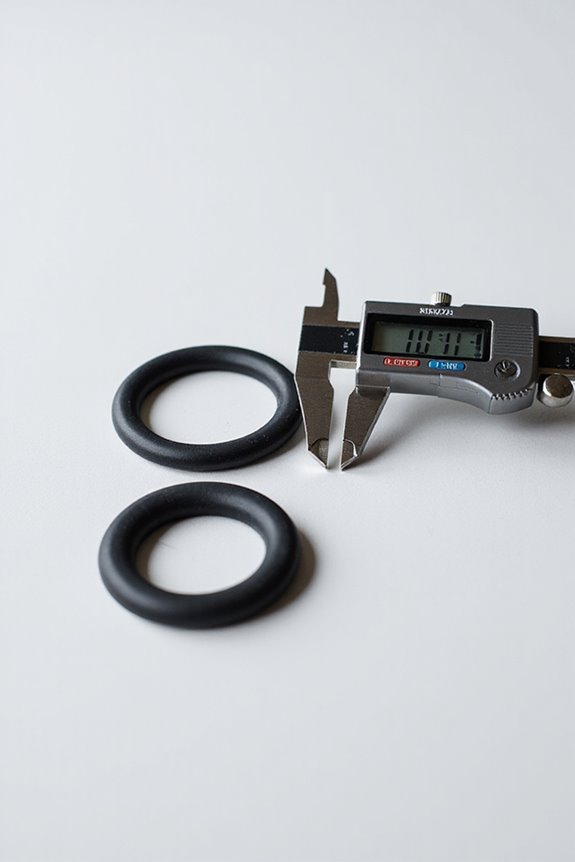

Fit and Tolerance Considerations
Fit and tolerance considerations are essential for ensuring our O-rings perform effectively in various applications. When we look at dimensional tolerances, each measurement—cross section, inside diameter, and outside diameter—must be precise. For instance, military O-rings can have tolerances as strict as ±0.004–0.005 in. Groove design also plays a significant role; the groove must accommodate the O-ring’s nominal size and its tolerances to maintain proper squeeze.
Key factors to remember include:
- Tolerance Stacking: Accumulated variations affect the final fit.
- Squeeze Guidelines: 15-30% compression is ideal for static seals. Additionally, proper suction power is critical in ensuring effective sealing performance in various applications.
Recommended Products
This pistol model shoots spherical .68 caliber projectiles.
Small Parts - KIT-SPL-MN70 Buna-N O-Ring Splicing Kit, 70A Durometer, Black, Metric Sizes, 9 Pieces, 1 Meter Each
{High Quality}：Fkm o ring assortment kit made of brown fluorocarbon 75A durometer material,characterized by high temperature resistance, oil resistance,acid and alkali resistance to various chemicals and special medium occasions,etc, the working temperature range is from -15℉ (-26℃) to + 446℉ (+230℃)

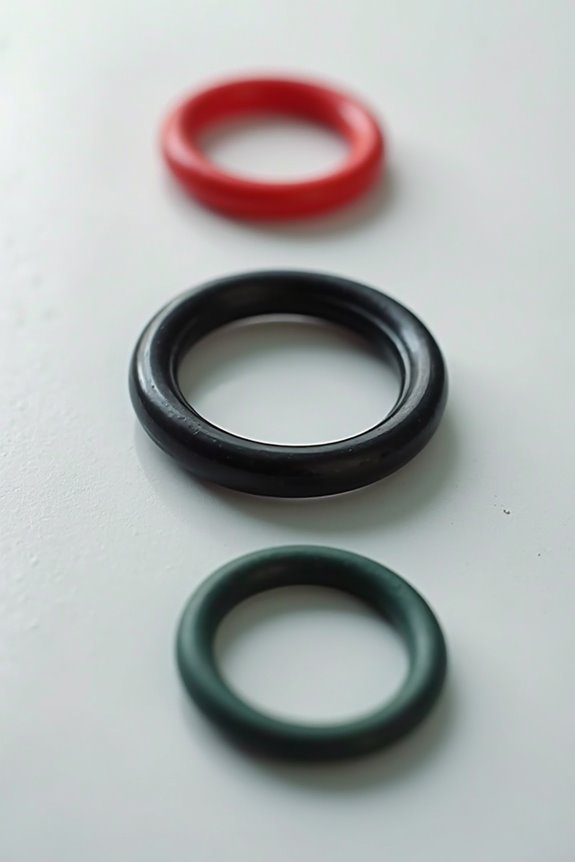

Material and Application Impacts on Sizing
Choosing the right material for O-rings is vital, especially since it directly affects sizing and performance. The chemical compatibility of the elastomer is essential; materials like FKM can handle hydrocarbons, while PTFE is excellent in ultra-clean applications. Temperature effects also play a role; some materials expand greatly with heat, which impacts sizing. For instance, selecting EPDM for hot water applications means considering its superior thermal properties.
When dealing with pressure dynamics, precise sizing is key. O-rings under high pressure require a perfect fit to prevent extrusion. Overall, understanding material properties helps us make informed decisions that optimize sizing and functionality. Balancing these factors guarantees durability and effectiveness, leading to successful sealing in varied environments. Additionally, selecting cleaners with specialized formulas for effective removal of odors can enhance overall performance in households.
Recommended Products
High‑Capacity 80 Gallon Performance: Large 80‑gallon horizontal tank delivers 17.2 CFM at 90 PSI and up to 175 PSI max, supporting high‑demand shop and industrial air tools.
Solid aluminum housing designed for rugged use
Lightning-Fast 3 Second Crimps: 1550 pro press copper crimper tool, 32KN Instant Power Full-force pressing from the first second 3-6s no warm-up. 50% Faster than standard tools, Complete 100+ crimps/hour effortlessly

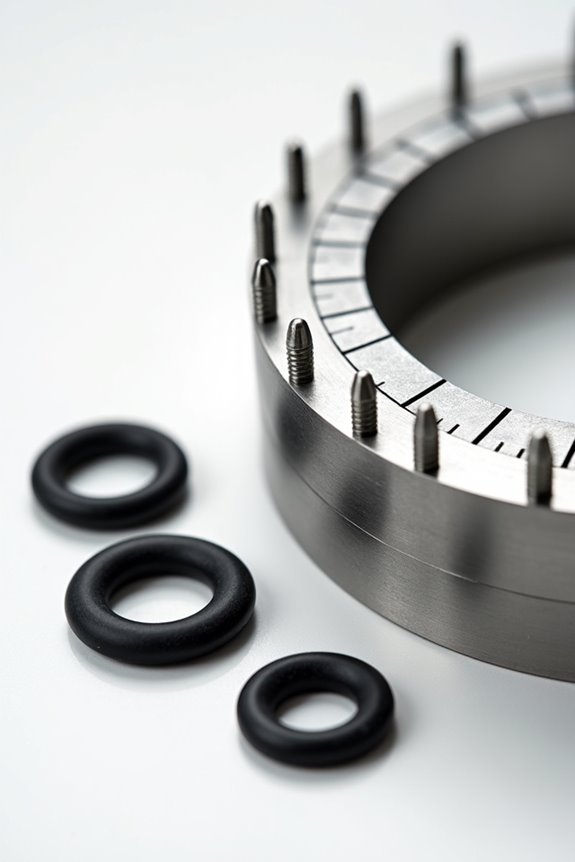

Tools and Resources for O-Ring Sizing
When it comes to O-ring sizing, having the right tools at your disposal makes a considerable difference. Using specialized measurement tools like the Parker O-Ring Sizing Gauge and slide calipers can enhance sizing accuracy considerably. These tools help us measure the inside diameter and cross-section thickness efficiently.
- Sizing Gauges & Cones: Quickly identify sizes with printed numbers and slots.
- Digital Micrometers: Measure thickness to thousandths of an inch.
Reference charts, including AS568 standards, are essential for cross-referencing sizes. Additionally, O-Ring Material Identification Devices (ORID) guarantee compatibility with various materials. By leveraging these tools, we can simplify the replacement process and guarantee a precise fit for our O-rings. Ensuring that O-rings meet EPA and CDC standards is critical for safe application in sensitive environments.
Recommended Products
Slide gauge for measuring O-Rings
Ideal tool for quick and easy identification of standard AS568 O-Rings
O RING SIZER CONE & HOOK AND PICK SET comes with a heavy duty sizing cone for measuring the thickness of the o ring as well as the inside diameter. The pick tool is a double sided hook tool that's great for piercing seals and pulling them out of boars.
Practical Tips for Replacement Sizing and Ordering
To guarantee we get the right replacement O-ring, it is crucial to understand sizing and ordering processes thoroughly. Here are some practical tips to overcome sizing challenges and implement effective replacement strategies:
- Measure Accurately: Use calipers to measure the O-ring’s inside diameter (ID) and cross-section. Avoid measuring worn rings; stick to original specs.
- Select Standard Sizes: Check standard charts, like AS568, for quick reference to avoid custom O-rings, thereby saving time and costs.
- Document Specifications: Track the size, material, and condition of removed O-rings for future replacements.
- Order Efficiently: When ordering, specify size, material, and any special requirements like hardness. Moreover, consider the efficiency of filtration systems to choose the right O-ring for applications requiring precise sealing.
Frequently Asked Questions
Can I Reuse Old O-Rings for Replacements?
It’s tempting to think reusing old o-rings saves resources, like recycling cherished memories. However, I wouldn’t trust them for safety. O-ring sustainability lies in compatibility and ensuring they’re fit for your critical applications.
What Causes O-Rings to Fail Prematurely?
O-rings can fail prematurely due to poor compatibility with materials and environmental factors like temperature or chemical exposure. I’ve seen how essential it is to choose the right elastomer and consider external conditions for longevity.
How Do I Know the Right Material for My Application?
To choose the right material for my application, I evaluate material compatibility with the chemicals involved and assess the application temperature. This guarantees durability and effectiveness, preventing potential failures that could disrupt operations.
What Are the Signs of a Damaged O-Ring?
Your O-ring’s like a protective shield; it needs regular inspection. Look for signs of wear—cracks, flattening, or abrasions. By catching these issues early, you can prevent bigger headaches down the line. Trust me!
How Can I Store O-Rings to Extend Their Lifespan?
To extend my O-Rings’ lifespan, I use proper O-Ring storage solutions and preservation techniques. I keep them cool, dry, and organized, preventing overcrowding and ensuring they’re away from heat sources and direct sunlight.
